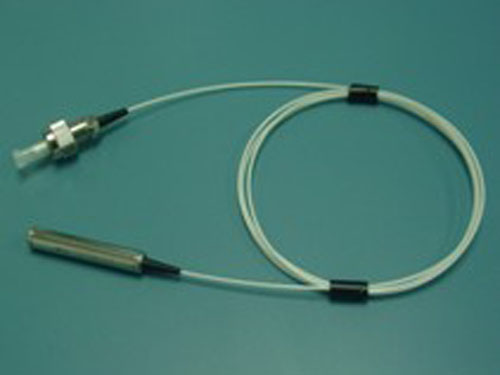

Faraday Mirror

Detail

Features:
　Low insertion loss
　High return loss
　Low polarization sensitivity
Applications:
　Fiber optic amplifiers
　CATV fiber optic links
　Fiber optic systems testing
　Fiber optic LAN systems
　Telecommunications

Specifications:

Parameter	Premium	A Grade
Operating Wavelength (nm)	1310 or 1550
Typical Insertion Loss** (dB)	<0.45	<0.6
Maximum Insertion Loss*** (dB)	<0.6	<0.7
PDL (dB)	< 0.05	< 0.1
Faraday Rotation Angle (Single Pass)	45°	45°
Rotation Angle Tolerance over Wavelength and Temperature	+/-0.5°
Bandwidth (nm)	+30
Operating Temperature (° C)	-5 ~ + 70
Storage Temperature (° C)	-40 ~ +85
Fiber Type	SMF-28e bare fiber
Fiber Length (Min.)	1 Meter Each End
Package Dimension (mm)	5.5x30 or 4.5X25
Power Handling (mW)	500

Note: 1. * At 23° C over bandwidth
2. ** Does not include connector, splice and fiber-end Fresnel losses
3. *** Including PDL, center wavelength + 30 nm, -5 to + 70° C

　　　　　　　　　　　　　　　　　Ordering Information:

　　　　　　　　　　　　　　　FMR-XXXX-X -X -X- X

　　　　　　　　　　　　　　　　　A B C D E

A	Wavelength	1310=1310nm
		1550=1550nm
		XX= Customized
B	Grade	P= Grade “P”
		A= Grade “A”
C	Pigtail Type	1=250um Bare Fiber
		2=900um Jacket
		3=3mm Cable
D	Fiber length	1=0.5M
		2=1M
		3=1.5M
		x=Customized
E	Connector Type	0=None
		1=FC/APC
		2=FC/PC
		3=SC/APC
		4=SC/PC
		5=ST
		6=LC

Detail
