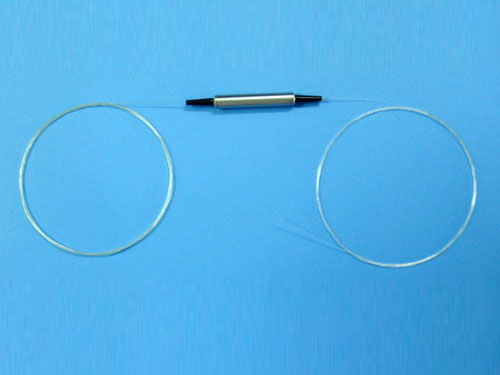

Polarizer

Detail

Features:
　High isolation
　Low insertion loss
　High return loss
　Optical path epoxy free
Applications:
　PM Test Systems
　Laboratory

　　Specifications: (Standard) Single stage

Parameter		Premium
Operating Wavelength (nm)		1310 or 1550
Typical Insertion Loss** (dB)		<0.4
Maximum Insertion Loss*** (dB)		<0.6
Return loss (In/Out) (dB)		>60
ER （23° C) (dB)	Typical	30
	Maximum	25
Bandwidth (nm)		+30
Operating Temperature (° C)		-5 ~ + 70
Storage Temperature (° C)		-40 ~ +85
Fiber Type		400um or 250um PM Fiber
Fiber Length (Min.)		1 Meter Each End
Package Dimension (mm)		5.5x32
Power Handling (mW)		500

Note: 1. * At 23° C over bandwidth
          2. ** Does not include connector, splice and fiber-end Fresnel losses
          3. ***, center wavelength + 15 nm, -5 to + 70° C
         4.For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

　　　　　　　　　　　　　 Ordering Information:

　　　　　　　　　　　 ILP-X- XXXX -X –XX-XX

　　　　　　　　　　　　 A B C DE FG

A	Fiber Type(Input - Out)	1= SMF - PM
		2= PM - PM
B	Wavelength	1310=1310nm
		1550=1550nm
		XX= Customized
C	Grade	P= Grade “P”
		A= Grade “A”
D	Pigtail Type	1=250um Bare Fiber
		2=900um Jacket
		3=3mm Cable
E	Fiber Length	1=1.0m
		2=1.5m
		3=2.0m
		4=Customized Length
FG	In/Out Connector	0=None
		1=FC/APC
		2=FC/PC
		3=SC/APC
		4=SC/PC
		5=ST
		6=LC
