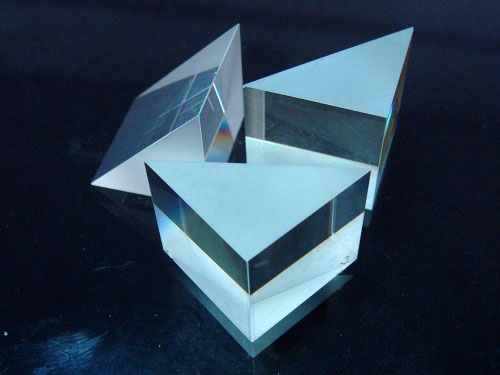

Right-Angle Prism

  • Detail

　　　　Right-Angle Prism is used as a mirror to deviate light through 90 degree, and also as a retroreflector to deflect light through 180 degree by total internal reflection.

　　　　Specifications:

Material:

BK7

Diameter Tolerance:

+0.0/-0.2mm

Angular Tolerance:

see the table as follow

Flatness:

l/2 @ 632.8nm

Surface Quality:

60/40

Clear Aperture:

>80%

Bevel:

<0.25mm X 45°

Coating:

Uncoated






Dimension
(mm)

3 Min. Deviation

1 Min. Deviation

30 Sec. Deviation

Part No.

Part No.

Part No.

A=B=C=2.0

RAP1-101

RAP1-201

RAP1-301

A=B=C=3.2

RAP1-102

RAP1-202

RAP1-302

A=B=C=5.0

RAP1-103

RAP1-203

RAP1-303

A=B=C=10.0

RAP1-104

RAP1-204

RAP1-304

A=B=C=12.7

RAP1-105

RAP1-205

RAP1-305

A=B=C=15.0

RAP1-106

RAP1-206

RAP1-306

A=B=C=20.0

RAP1-107

RAP1-207

RAP1-307

A=B=C=25.4

RAP1-108

RAP1-208

RAP1-308

A=B=C=30.0

RAP1-109

RAP1-209

RAP1-309
