Model：YS-FP-1310-56A



Features:

Wide Operating Temperature(-40°C to 85°C or 100°C)
Stable Threshold Current for Easy Transmitter control(T0~80K)
1310nm Typical Emission Wavelength FP-LD’s

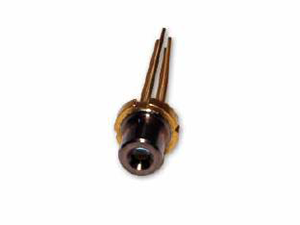

5.6MM To-Can Package With Flat Window. (Ball-lens version available)
High-Speed Modulation Capability (Up to 10Gb/s)
Excellent Reliability
Ultra-low gradual wear-out rates
<1% failures in 20 yrs at 55C
Application:

Source for high-speed data-communication and telecommunication links
Sonet, Fiber-Channel, Giag-bit ethernet, FTTx

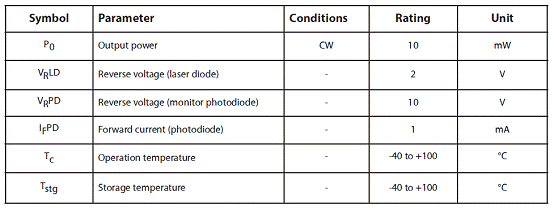

Absolute Maximum Ratings

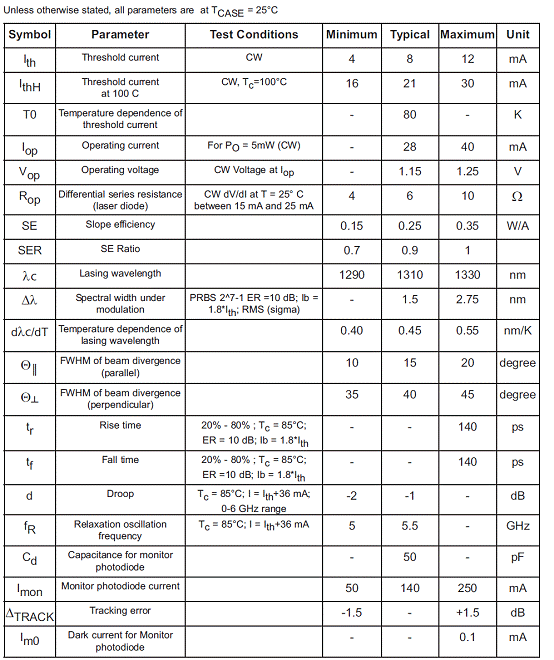

    Electrical-Optical Characteristics
